Details

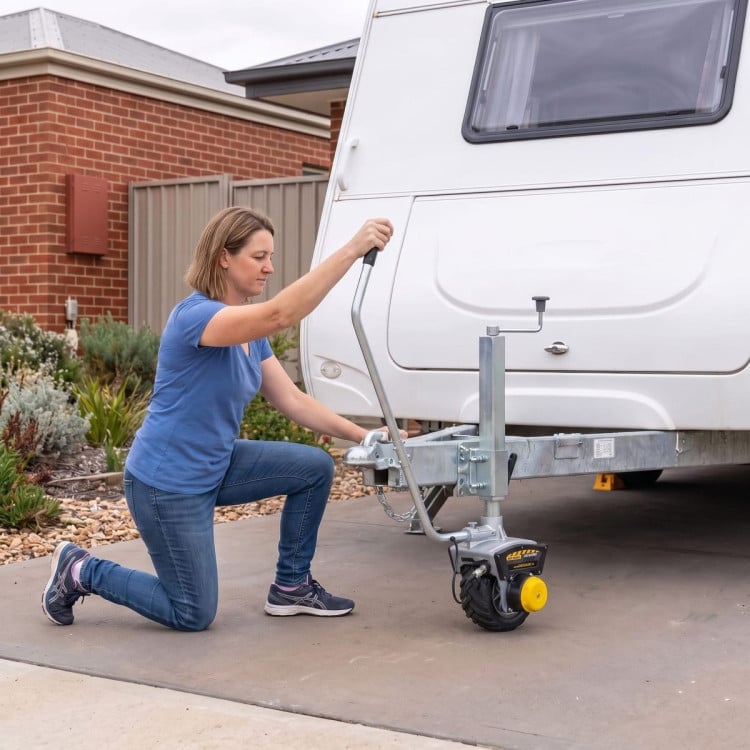

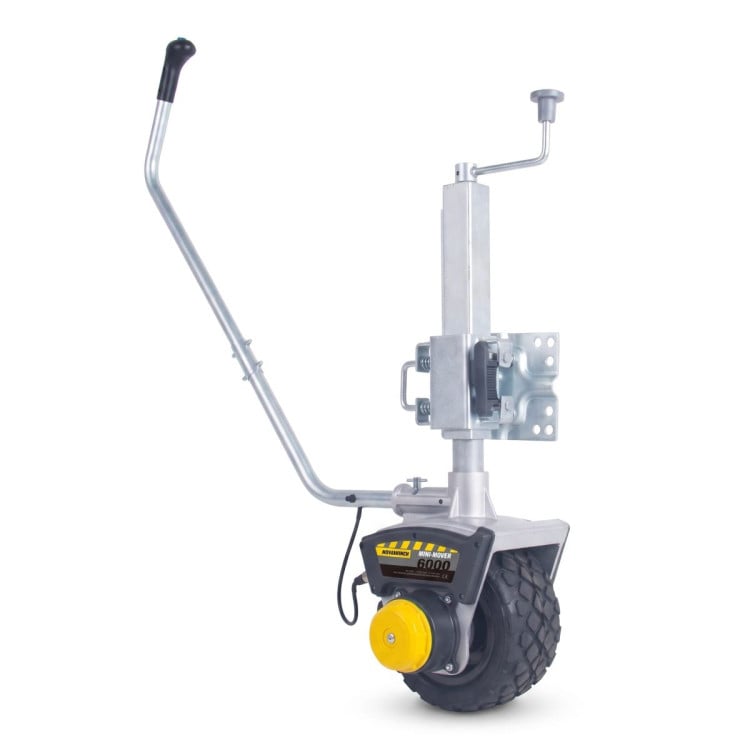

The Novawinch Gen 3 Plus Mini Mover turns a two-person job into a one-person job.

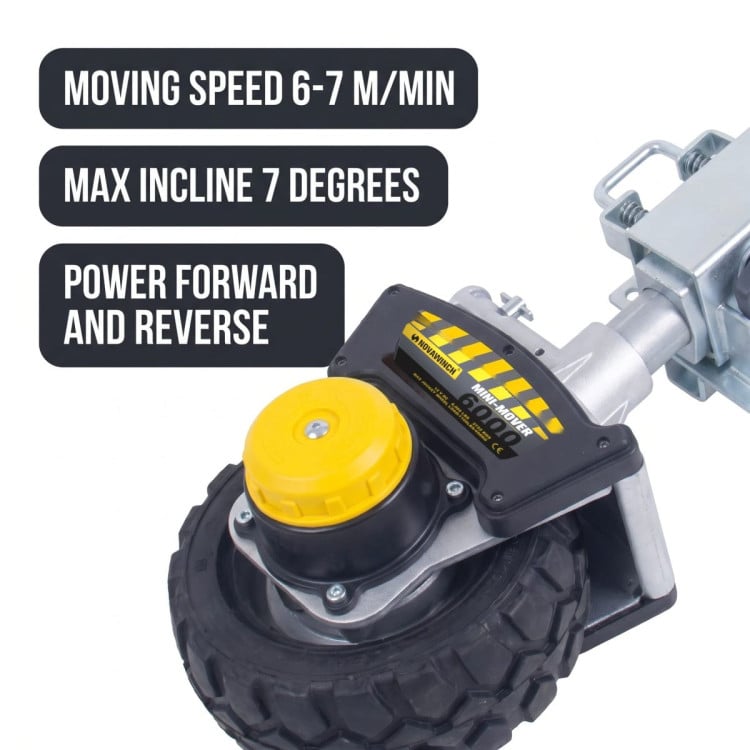

A 12V DC 550W motor moves up to 6000lb at 6 to 7 metres per minute, with power forward and reverse, an automatic motor brake that stops the drive wheel when you release the control, and a clutch that allows you to steer by hand.

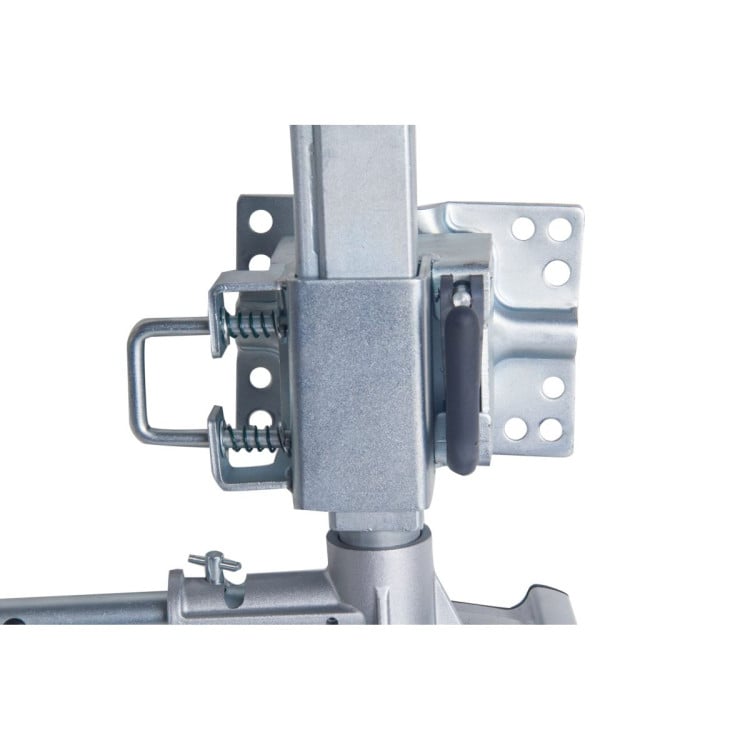

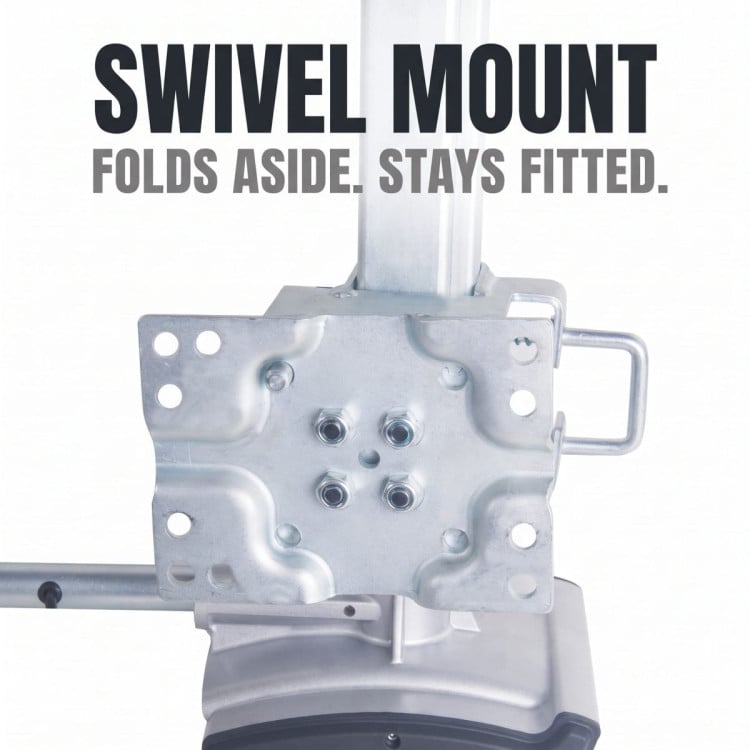

The new swivel mounting plate is an upgrade over the Gen 3. Simply swing the unit aside, and the securing bracket holds it clear, so it can stay fitted rather than being removed and stored after every trip.
An 8.3-inch no-flat tyre with a rubber tread provides grip on hard surfaces. The support jack is rated to 498kg, while the bracket height adjusts between 31cm and 53cm. Clamp and bolt-through mounting hardware is supplied.
Disclaimer: Not a braking system. Never rely on it to stop or hold a moving trailer. Not suitable for tandem vans or double-axle trailers. For use on hard, paved surfaces.
Key Features:

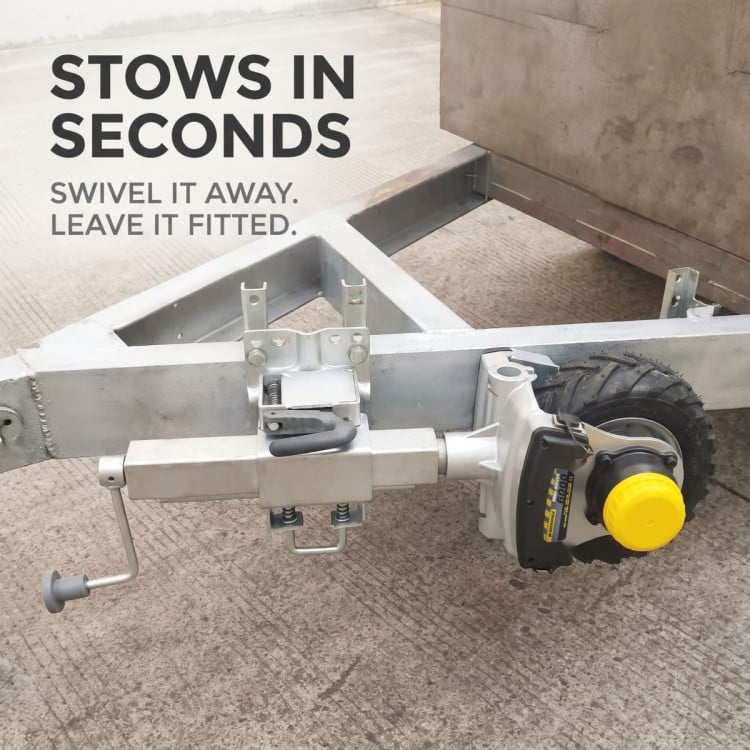

- Swivel mounting plate lets you fold the unit aside and leave it fitted to the trailer
- Securing bracket holds the wheel clear of the ground when swivelled away
- 12V DC 550W motor with power forward and power reverse
- Moves up to 2722kg (6000lb) on gradients of no more than 7 degrees

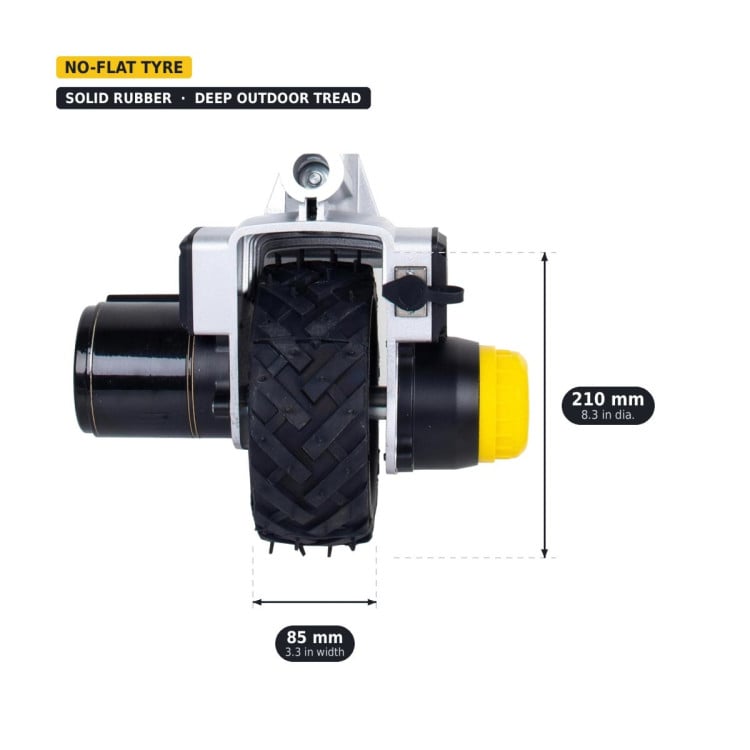

- 8.3 inch no-flat tyre with a rubber tread for traction on hard, paved surfaces
- Handle bar rotates left or right for manoeuvring in tight spaces
- Yellow clutch design lets the trailer be steered by hand without power
- Automatic motor brake stops the drive wheel when you release the control (not a trailer brake)

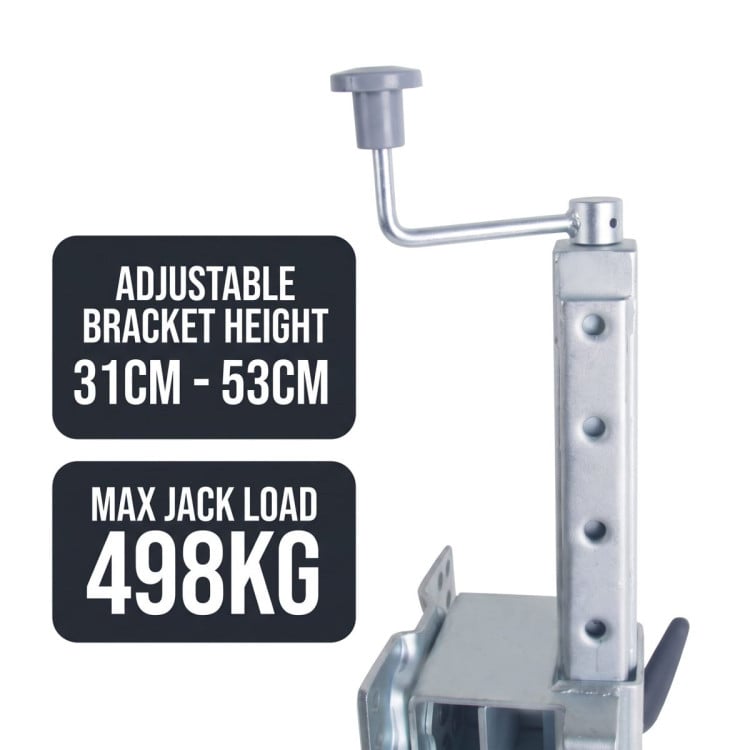

- Adjustable bracket height from 31cm to 53cm suits most drawbars

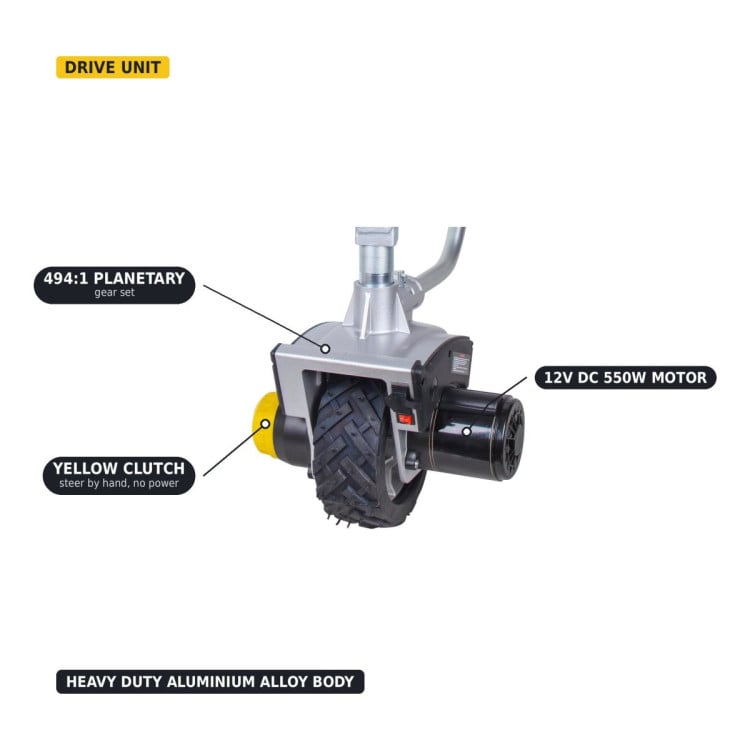

- Heavy duty aluminium alloy construction with a 494:1 planetary gear set
- Runs from a 12V 20Ah battery with 46A output for maximum performance (battery not included)

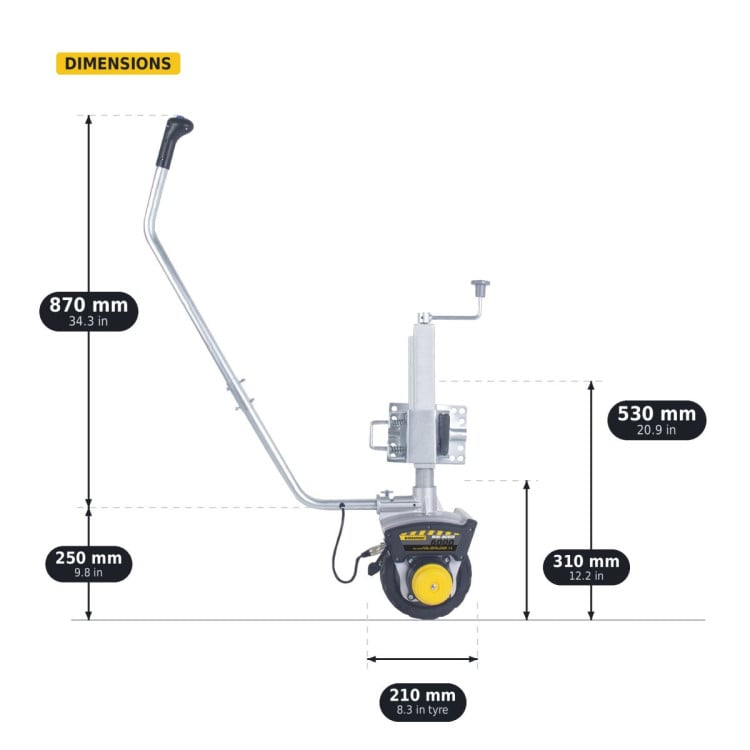

- Dimensions: 77 x 39 x 29cm
- Weight: 25kg

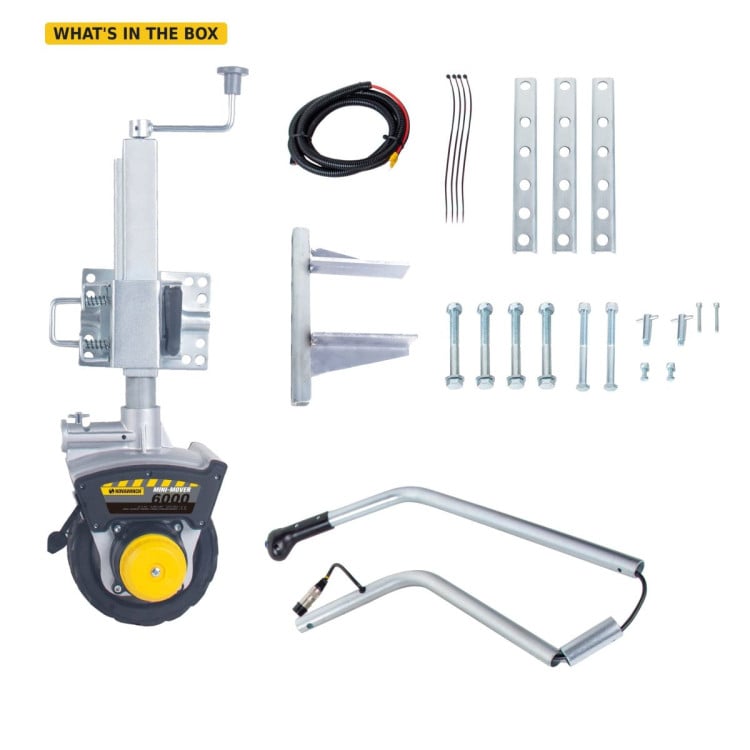

Package Includes:
- 1 x Mini Mover Gen 3 PLUS (NVYC500Q) DC12V motorised trailer mover body

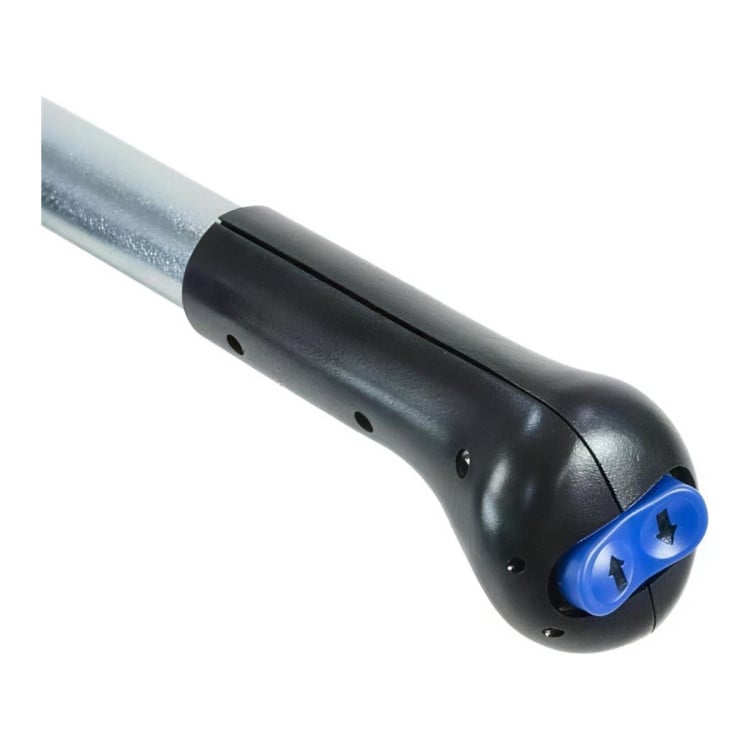

- 1 x Operating handle bar with forward/backward switch

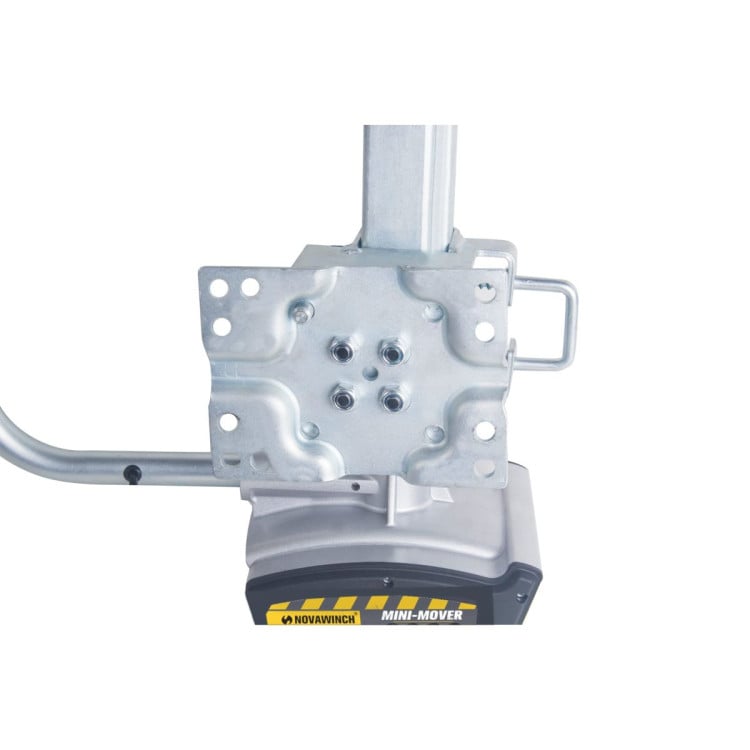

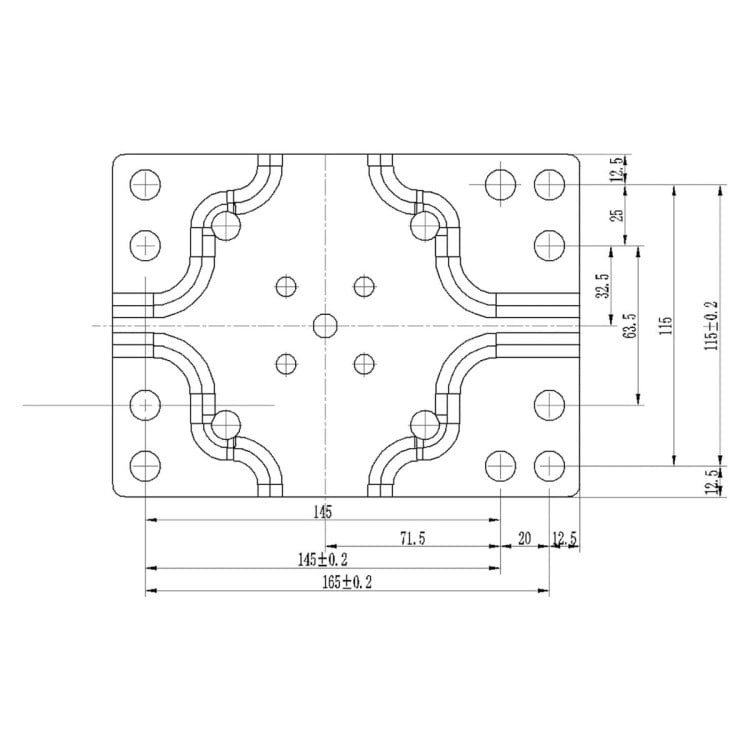

- 1 x Swivel mounting bracket
- 1 x securing bracket
- 3 x Back fixing plates (2 for the mounting bracket, 1 for the securing bracket)
- 1 x set of bolts

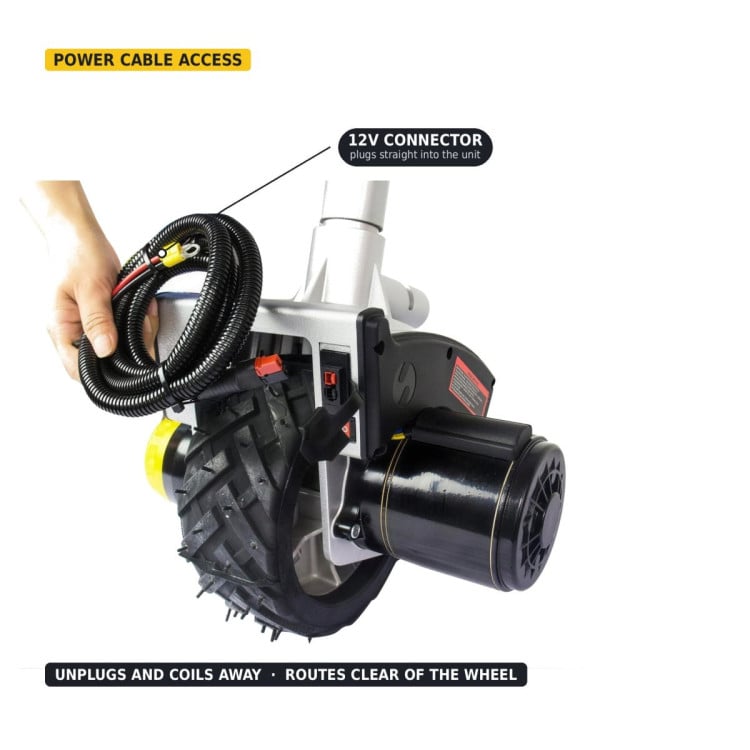

- 1 x Power cord
- 4 x cable ties
SKU: nt0404-g3p
