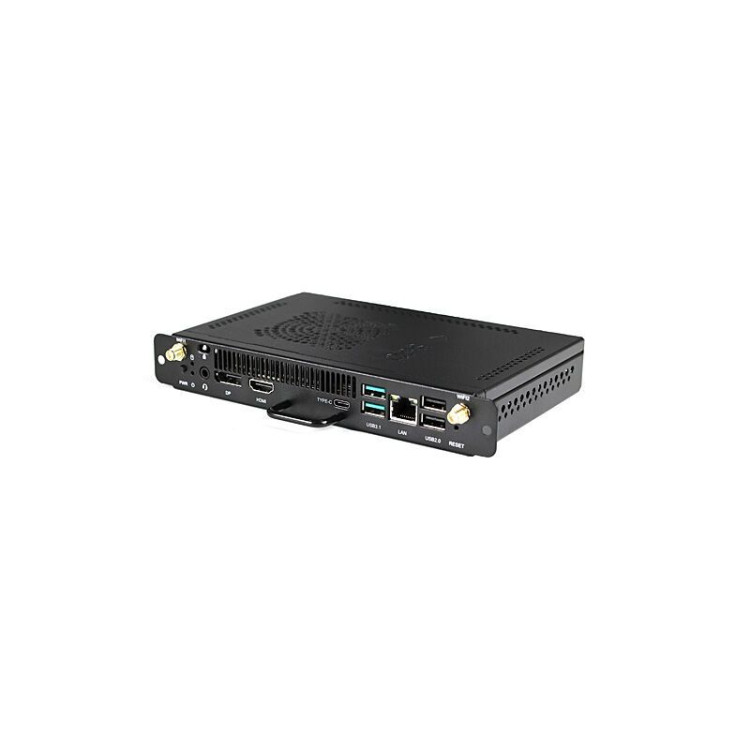

DAHUA i5 12th processor, 8GB + 256GB, Win 11 Pro activated
This high-performance OPS PC module provides a streamlined solution for upgrading smart interactive whiteboards. Built with a powerful Intel processor and a compact, detachable frame, it integrates directly into compatible displays to provide a comprehensive Windows environment. Perfect for the modern classroom or executive boardroom, this module ensures responsive graphics and consistent connectivity, offering a versatile computing powerhouse that enhances collaborative workflows.
Key Features:
- Processor: Intel Alder Lake-H i5-12450H up to 4.40 GHz
- Chipset: SoC architecture
- BIOS: AMI UEFI BIOS
- Graphics: Intel UHD Graphics for 12th Gen Intel Processors
- Audio: Realtek ALC897 sound card
- Memory: 8 GB RAM
- Storage: 256 GB SSD
- Wireless: Built-in Wi-Fi / Bluetooth module (AX101)
- Buttons: Front power button and recessed reset button
- Operating System: Supports Windows 11 Pro or no OS
- Specifications
- CPU: Intel Alder Lake-H i5-12450H
- CPU Cores / Threads: 8 Cores / 12 Threads
- Level 3 Cache: 12 MB
- Power Input: 1 DC IN
- Network: 1 RJ-45 (10/100/1000 Mbps)
- USB Ports: 2 USB 3.1, 2 USB 2.0
- USB Type-C: 1 USB 3.1 Type-C
- Display: Port1 DP 1.2 (Max. 4K @ 60 Hz)
- HDMI: 1 HDMI 1.4 (Max. 4K @ 30 Hz)
- Audio Port: 1 Line-out & MIC-in (2-in-1)
- Extension Interface: 1 80-pin JAE port
- Operating Voltage: 12-19 VDC
- Standby Powe: r0.8 W
- Power Consumption: Typical: 53 W / Max: 58.8 W
- Operating Temperature: -5 C to +45 C (+23 F to +113 F)
- Operating Humidity: 10%-90% (non-condensing)
- Storage Temperature: -20 C to +70 C (-4 F to +158 F)
- Storage Humidity: 10%-90% (non-condensing)
- Casing Material: SGCC
- Product Dimensions (L W H)119 180 30 mm (4.69 7.09 1.18)
- Packaging Dimensions: 254 196 77 mm (10.00 7.72 3.03)
- Net Weigh: t0.75 kg (1.65 lb)
- Gross Weight: 0.95 kg (2.09 lb)
- Casing Color: Black
- Accessories: 2 Antennas, 2 M3 Screws, 1 Desiccant, 1 Users Manual
- Certifications: CE, Energy Star
